Transfer license to controller

The license transfer to the controller is generally designed to be independent of the Climatix IC.

Transfers may vary between the two cases, whether the controller is online or connected to the Internet or offline, i.e. not connected.

"Connect to the Internet (IP)" provides information on how the controller is connected to the Internet.

The controller is connected to the Internet

• The controller automatically downloads the license

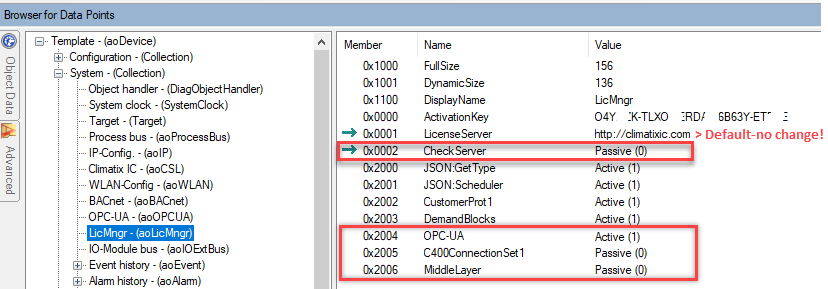

• Member 'CheckServer' is activated one time to this end (see figure above). The license to the controller is remanent and the CheckServer state is automatically reset to passive (switched off).

The controller is not connected to the Internet

• The downloaded file 'LicenseFile.UCF' is saved to a SD card (for C600) or USB stick (for C400).
• Insert the SD card or USB stick and restart the controller.

New as of VVS11.56

• For controllers with tool integration, the following is still available as of VVS11.56: Download from the Scope tool and transfer to controller via REST API.
