Connection steps

In advance over a normal LAN

Select "RTA" in member "CSL-Config > 0x000E Options". The setting must be set prior to contact with the Remote Tool Access.

This switch prevents connecting via the Remote Tool Access.

In Climatix IC

The user must have an account in Climatix IC to connect via Remote Access. Portal administrators cannot directly use the solution; only users assigned to a plant can use the Remote Tool Access to these plants. It is a solution for developers and service personnel.
The role includes the privilege "Remote Tool Access" (typically the roles service and owner)
The controller is connected to Climatix IC.

Connect with Remote Tool Access

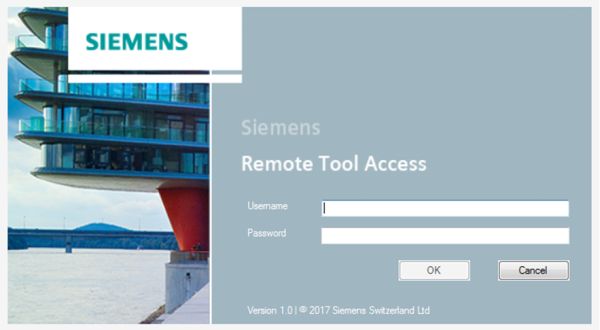

The user logs in to the Remote Tool Access using the same Climatix IC user name and password.

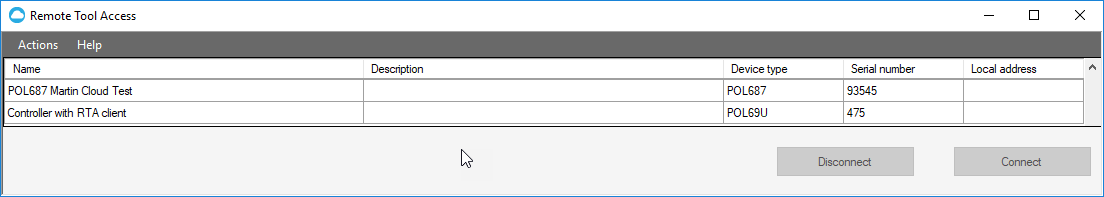

All the user's plants are listed on the overview page. The line displayed for the plants are

grayed out, i.e. the plants cannot be accessed:

Roles do not include privilege "Remote Tool Access" (e.g. at the end user)
The plant is offline
BSP for the Climatix controller is not sufficient
Member "CSL-Config > 0x000E Options" is not selected for "RTA"

displayed in black, i.e. the plants can be accessed

Procedure

Select the line of the plant for connecting.
Connect with "Connect".

The software searches for an available local IP address between 127.0.0.1 and 127.0.0.255 connects to the selected POL controller via Climatix IC using this address.
The line for the plant is in bold face.
It can be used with SCOPE or SAPRO as soon as it is connected.

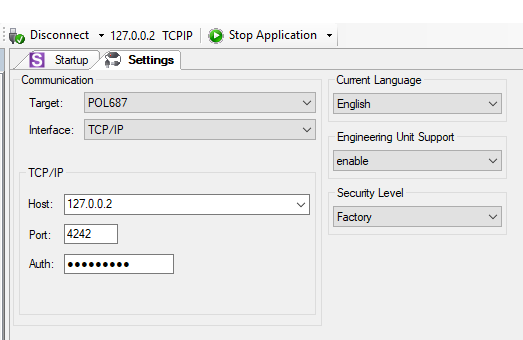

Example SCOPE

Open the SCOPE tool.
Select "Settings" in the project structure.
Set the target (controller type) and interface (TCP/IP).
Enter in host address from the Remote Tool Access in the TCP/IP pane.
Do not change port setting 4242.
Enter the Climatix controller password in the "Auth" field.
Back up the settings (diskette icon).
Connect with the "Connect" button to the target controller.
