Connect to cloud (CSL)

Table overview

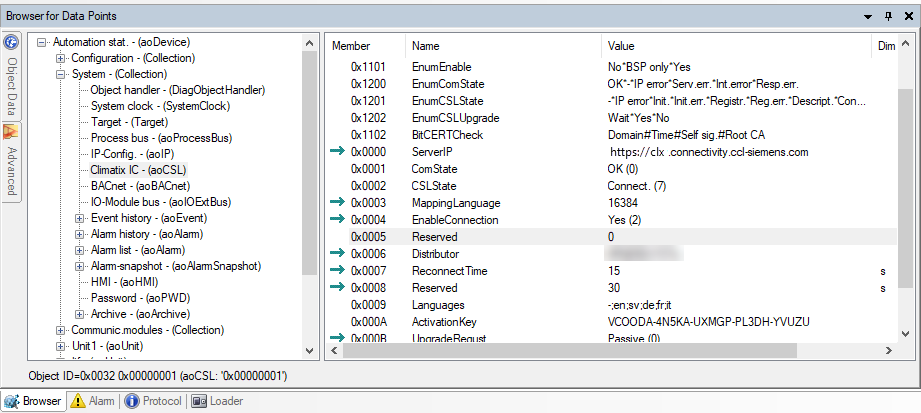

  1. In SCOPE, in the "Browser for Data Points", go to "SystemObjects > CSL-Config".
  2. Check the following member settings:

Member ID

Member name

Setting

0x0000

ServerIP

Server URL with connection protocol

For Climatix IC:

NOTICE! As a rule, do not change this value; the proper value comes from the BSP of the controller.

0x0004

EnableConnection

"Switch" for connecting. Is run as the last step.

0x0006

Distributor↑

The distributor key assigns the controller to the correct Tenant↑.

0x0007

ReconnectTime

Wait in seconds between two connection attempts

Workflow in detail and chronologically

  1. You have the Distributor↑ information (compare: "Basic data/tenant key (distributor)").
  2. SCOPE tool is open and connected to the target controller.
  1. In SCOPE, in the "Browser for Data Points", go to "SystemObjects > CSL-Config".
  2. Check the ServerIP: Do not change the default setting https://clx.connectivity.ccl-siemens.com.
  3. Enter the distributor↑/tenant↑ key in Distributor. The key is provided by the Tenant Administrator↑ or is preset in the SAPRO project (aoCCL Block).

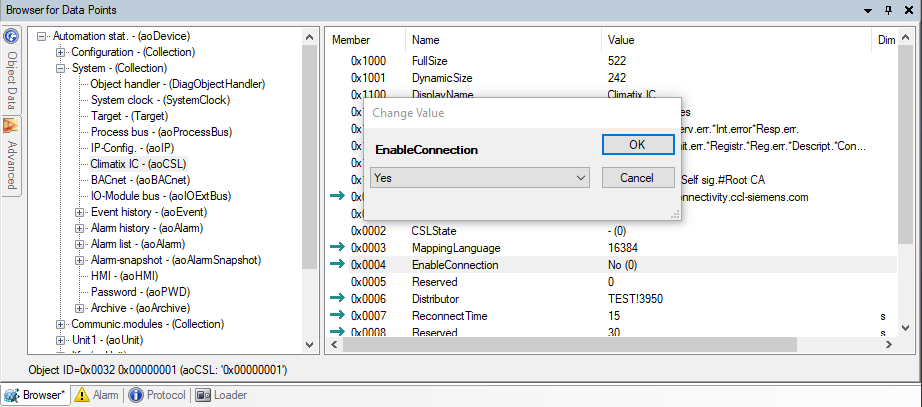

  4. The "switch" is used for connecting only at the end: Set EnableConnection to Enabled.

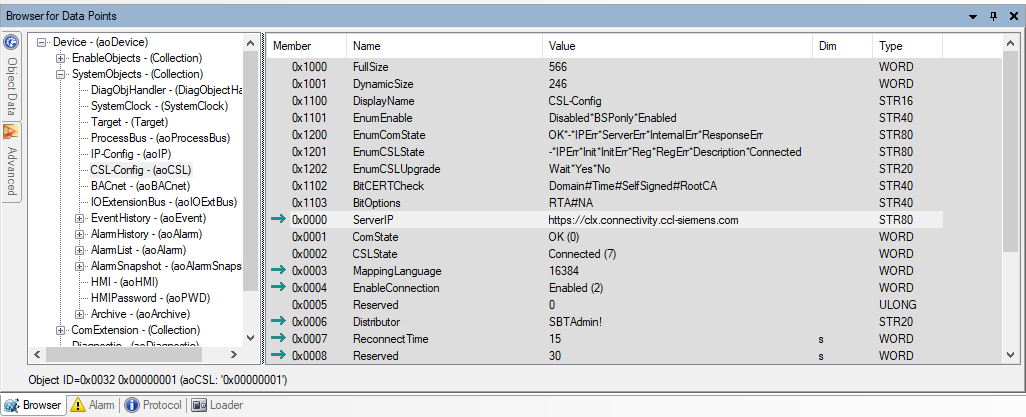

Check success

You can assume, according to the criterion indicated for both member↑ that the controller is communicating with Climatix IC (Cloud):



Error messages

Error messages are always displayed in the cloud help. Common errors are:

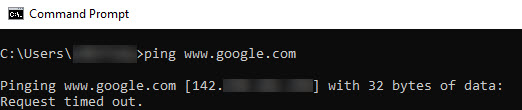

  1. Ping www.google.com

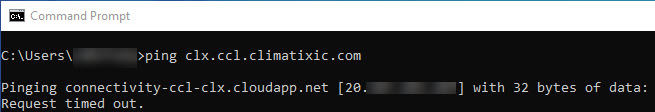

  2. Ping connectivity URL: clx.ccl.climatixic.com

'ComState' describes the state of communication with the cloud.

  1. GenericCloud mapping available?
  2. OBH created and downloaded?
  1. Check the controller's local IP settings and DNS address.
    • Alternatively, use 1.1.1.1 or 8.8.8.8.
  2. Check the distributor.
    • Wrong distributor?
    • Distributor does not exist?
  3. Check spelling.
    • Blanks at the beginning or end of the connectivity address?

'CSLState' describes the CSL state.
