Files in plants
The documents and files are located in the File menu. All files can be downloaded with the symbol

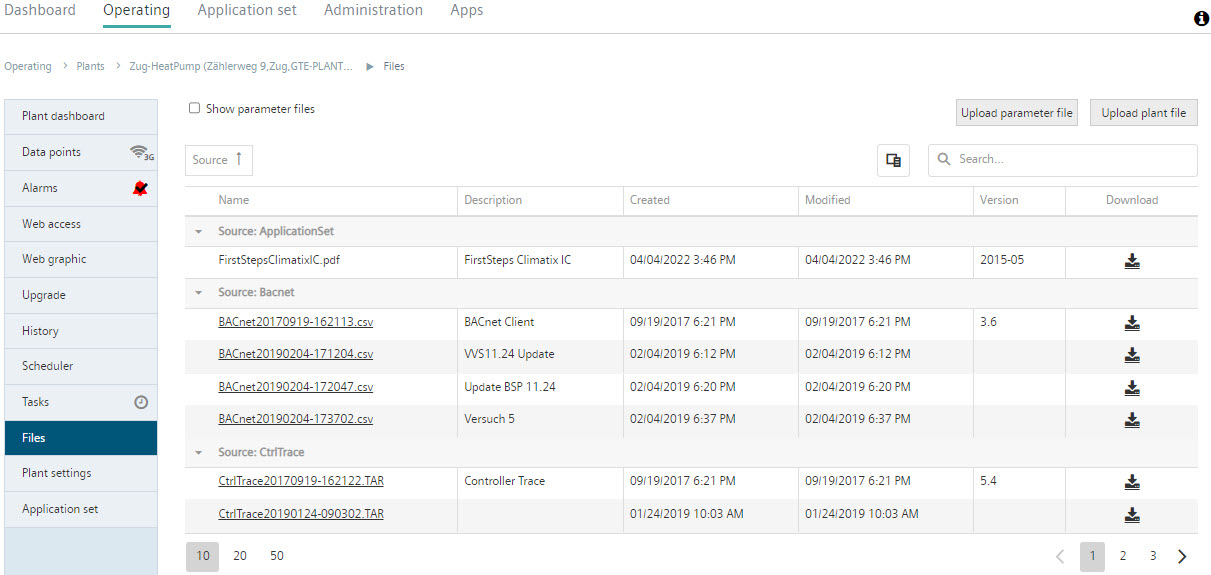

. The following illustration displays the files assigned by its source:
NOTICE
Visibility of command buttons
- "Display parameter file" is only displayed for privilege "Plant upgrade/.."
- "Source: Plant" is only displayed for privilege "Plant file access"
- Buttons "Upload parameter file" and "Upload new file" are only displayed for privilege "Manage plant files".
"Files"/ | File creation (menu) | Description | Example |
|---|---|---|---|
Plant | Operating > 'my plant' > Files > Upload plant file | The plant is visible when queried | Plant documentation |
application set | Application set > 'my application set' > Documentation > Upload new documentation files | When querying each plant with the application set | Application documentation |
Parameter * (Case 1) | Controller SD card via PC: Operating > 'my plant' > Files > Upload parameter file | The parameter file was saved from the controller to the SD card | Parameter.ucf |
Parameters (Case 2) | Operating > 'my plant' > Upgrade > Area: Online actions > Button: Create parameter file | The parameter file is saved from the controller to the cloud | Parameters |
Parameter (auto backup) * | Application set > 'my Appl-Set' > Settings > Range: Automatic parameter backup | The parameter file is saved from the controller to the cloud | AutoBackupParam[current date].ucf |
Parameter (auto backup persistent) * | Create the same as (auto backup); but:
| The parameter file is saved from the controller to the cloud, persistent | AutoBackupParam[current date].ucf |
Create controller trace * | Operating > 'my plant' > Upgrade > Area: Online actions > Button: Create controller trace | Controller trace file was saved from the controller to the cloud | CtrlTrace |
BACnet * | Operating > 'my plant' > Upgrade > Area: Online actions > Button: Create BACnet file | BACnet client file of the controllers was saved to the cloud | BACnet |
* These functions currently available for POL controllers↑ only

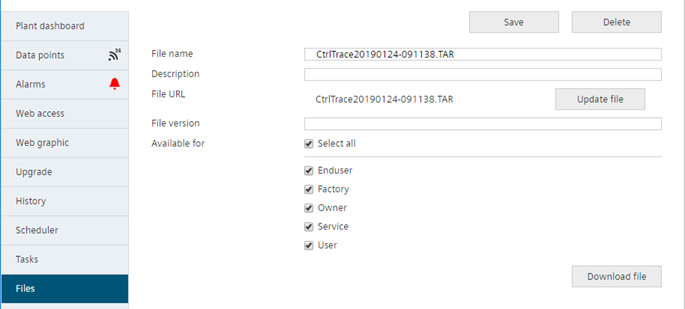

Access by role to plant files
The access to plant files can be limited for roles.
