Plant files
Application files
A user (with "Plant upgrade" privileges) can upload application files to the set, e.g. the SAPRO application and its HMI engineering files as well as communications mapping. Two different buttons are available to upload:
- "Upload new UCF file": Plant files in the UCF format
- "Upload new specific file": BACnet and SCOPE light files
BSP files
The user can upload the released firmware (BSP) of the controller for this application set. "Download" (
) can also resave the file locally.
COV files
Concept:
Climatix IC support of the COV concept ('Change of Value'). The parameter limit values are set in this concept. Only values that exceed the set parameter limit values are forwarded to the client. The parameter limit values are stored to the COV files.
The COV files are created in SCOPE. To configure the files: See SAPRO and SCOPE documentation:
Procedure:
- Go to 'Application set > Plant > [My plant] > Application'.
- Click 'Upload new UCF file'.
- A new "UCF file" page opens.
- Enter the desired data.
- Click 'Upload file'.

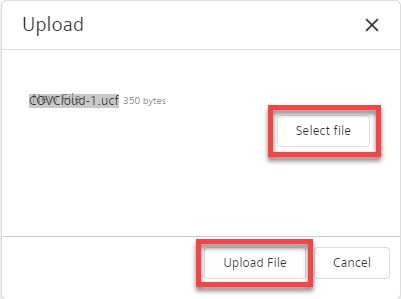

- A new 'Upload' window opens.
- Click 'Select file' and the actual file.
- Click 'Open'.
- Click 'Upload file'.
- Click 'Save'.
- A COV file is saved to the application set.
Additional information
For more information on the structure and use of COV files, see chapter 'COV files'.
Cloud files
The following file types can be loaded using the button "Upload new cloud file":
- Dashboard config files in JSON format
- Web graphic files in SVG format
Additional information
"Create dashboards specific to applications for individual roles" describes creating own dashboard in JSON format.
