Displaying data use to date on an M2M SIM card

The transmitted data volume via the Vodafone SIM cards is graphically depicted for better control and an overview of the data volumes and costs.

For this purpose, Climatix IC retrieves information on the data volume used by a SIM card from Vodafone. This is done at the end of the usage unit, i.e. daily as a rule. The data taken from Vodafone is stored in Climatix IC and displayed in a bar chart:

  1. Data for the current calendar year is available from at least one SIM card.
  1. Go to 'Administration > M2M Router'.
  2. On the ICCID↑ entry, select the SIM card (see 'M2M router').

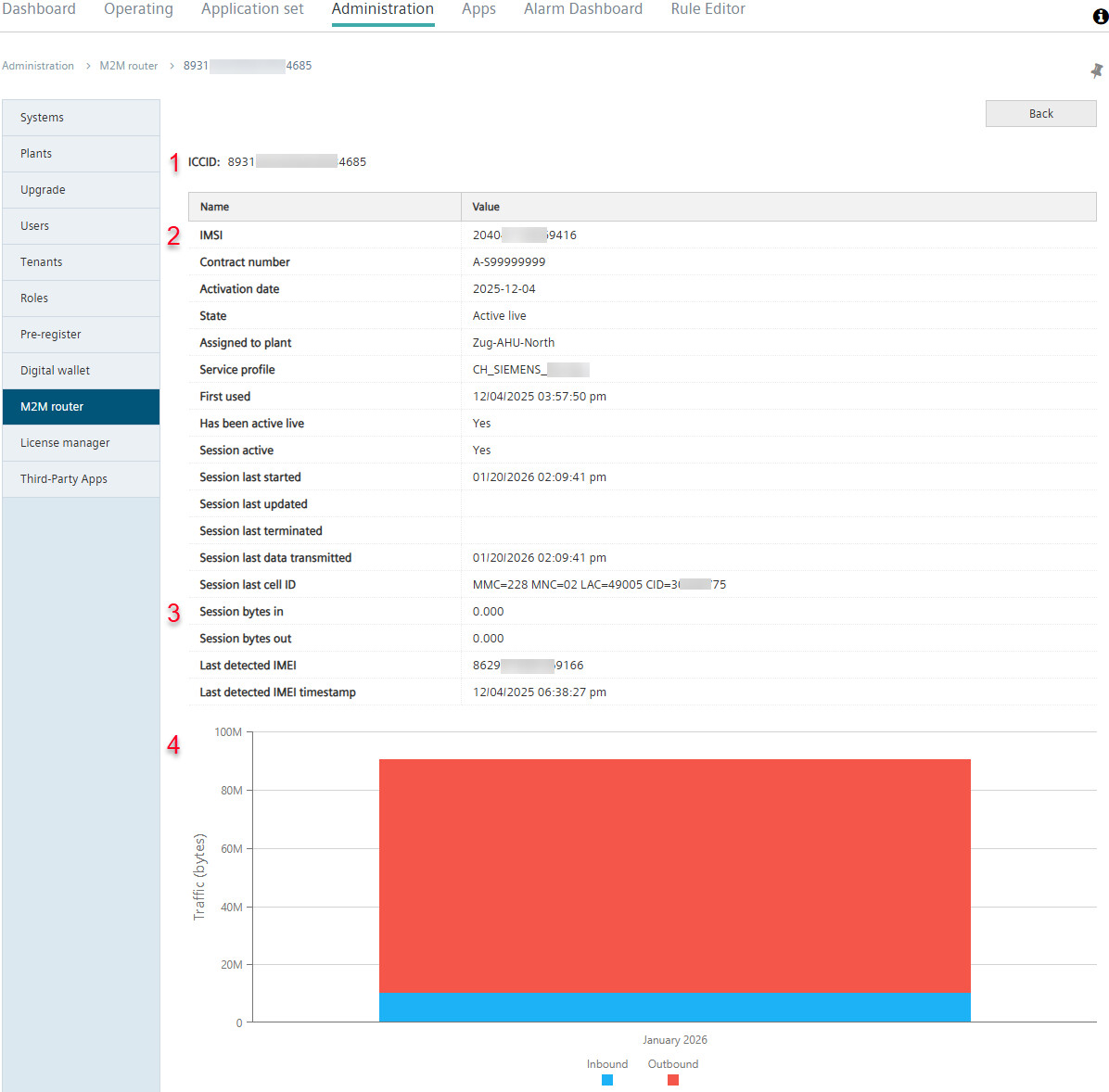

  1. A new window opens with the selected ICCID↑ (1).
  2. The transmitted data volumes on the SIM card for the current calendar year is displayed in a table (2).
  3. The volume of transmitted data is summarized on a monthly basis (3).
  4. Traffic volume is displayed in a bar chart (4), broken down by outgoing and incoming data volume.
