M2M router

Vodafone SIM cards supplied with the Siemens M2M↑ solution, are integrated in Climatix IC and can connect to a plant.

Siemens invoices the data use.

The logistical task of managing numerous wireless connections is significantly simplified by compiling everything by topic in Climatix IC.

A filter function for the SIM card status and search functions for ICCID↑ and IMSI↑ complete the service.

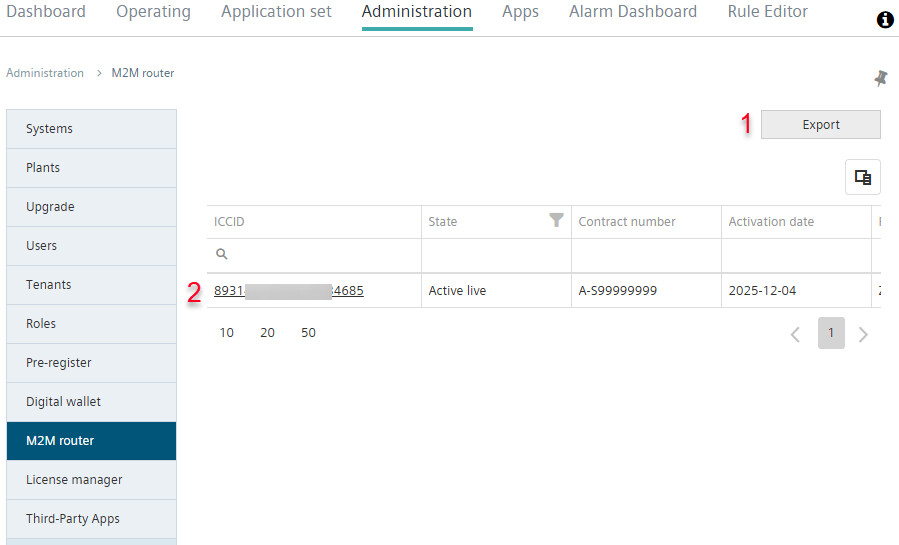

  1. Select 'Export' to export data from all SIM cards (see 'Download table with consumption data from a M2M SIM card as a .csv file').

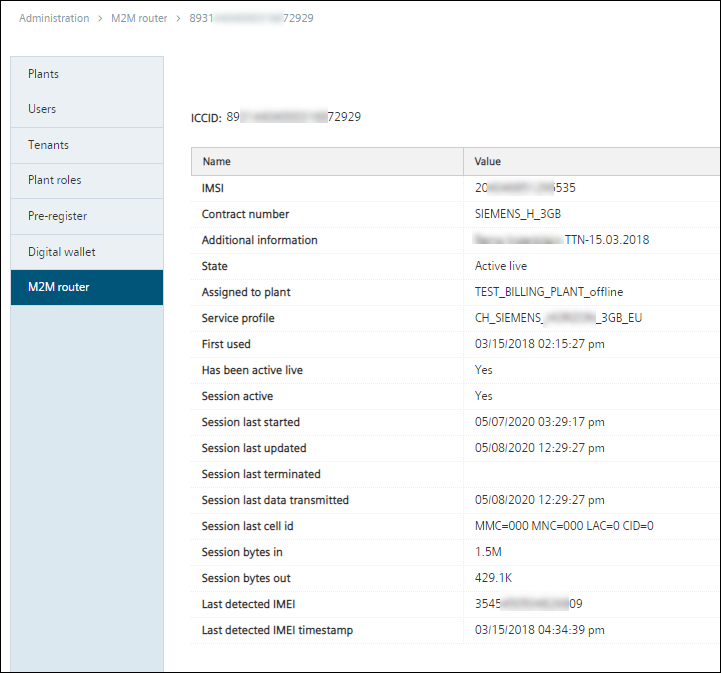

  2. Select ICCID (2) to open the detailed information on the SIM card (see 'Displaying data use to date on an M2M SIM card').
info

Set a MTU (Maximum Transmission Unit) of 1500 for POL/POS controllers↑.
