Suppress alarms
Alarms can be suppressed at the plant level. The function can be helpful on plants that produce a high number of alarms that cannot be processed in a reasonable way. For example, frequent alarms can occur with:
- A known malfunction of a plant.
- A maintenance period during which the plant is fully or partially impaired.
- Plant test phases where the various functions are tested and these trigger alarms.
Individual alarms or all plant alarms can be switched off to avoid non-relevant alarms in such a situation. You can specify a specific period for the alarm suppression or for an unlimited period.
- The Tenant has at least one plant with an alarm.

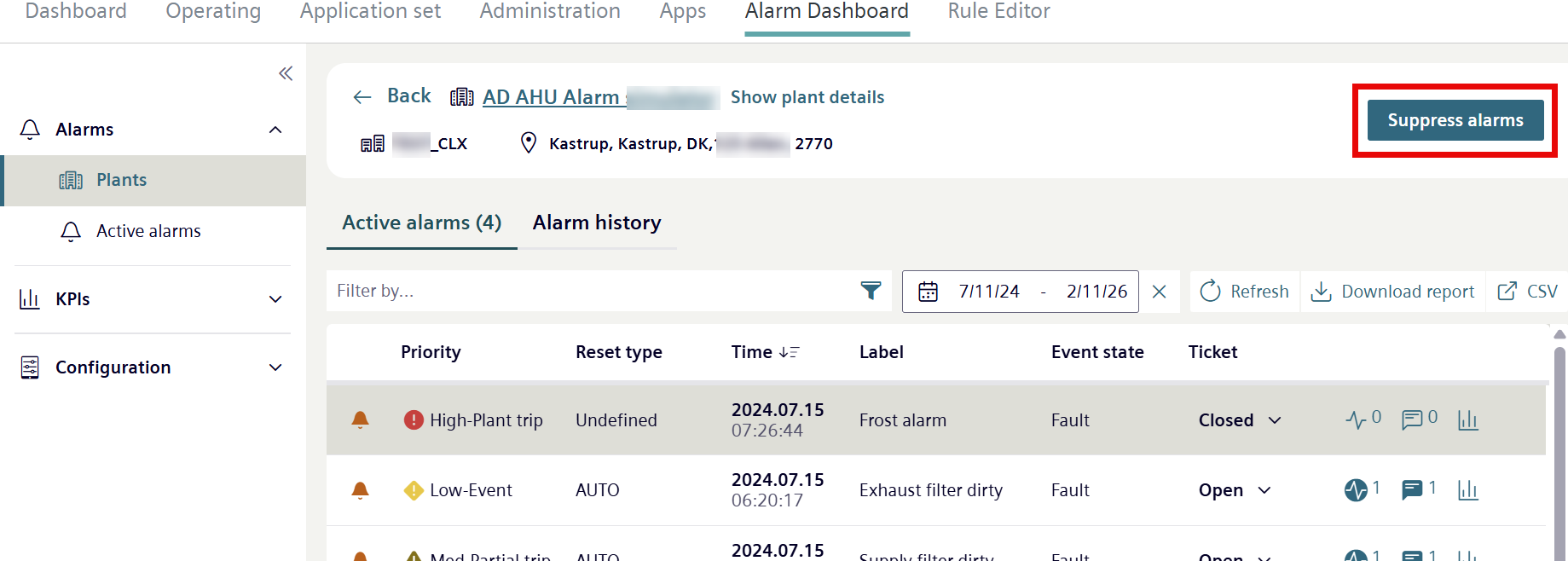

- Go to 'Alarm Dashboard > Alarms > Plants > Plant with alarms to be suppressed'.
- Click 'Suppress alarms'.

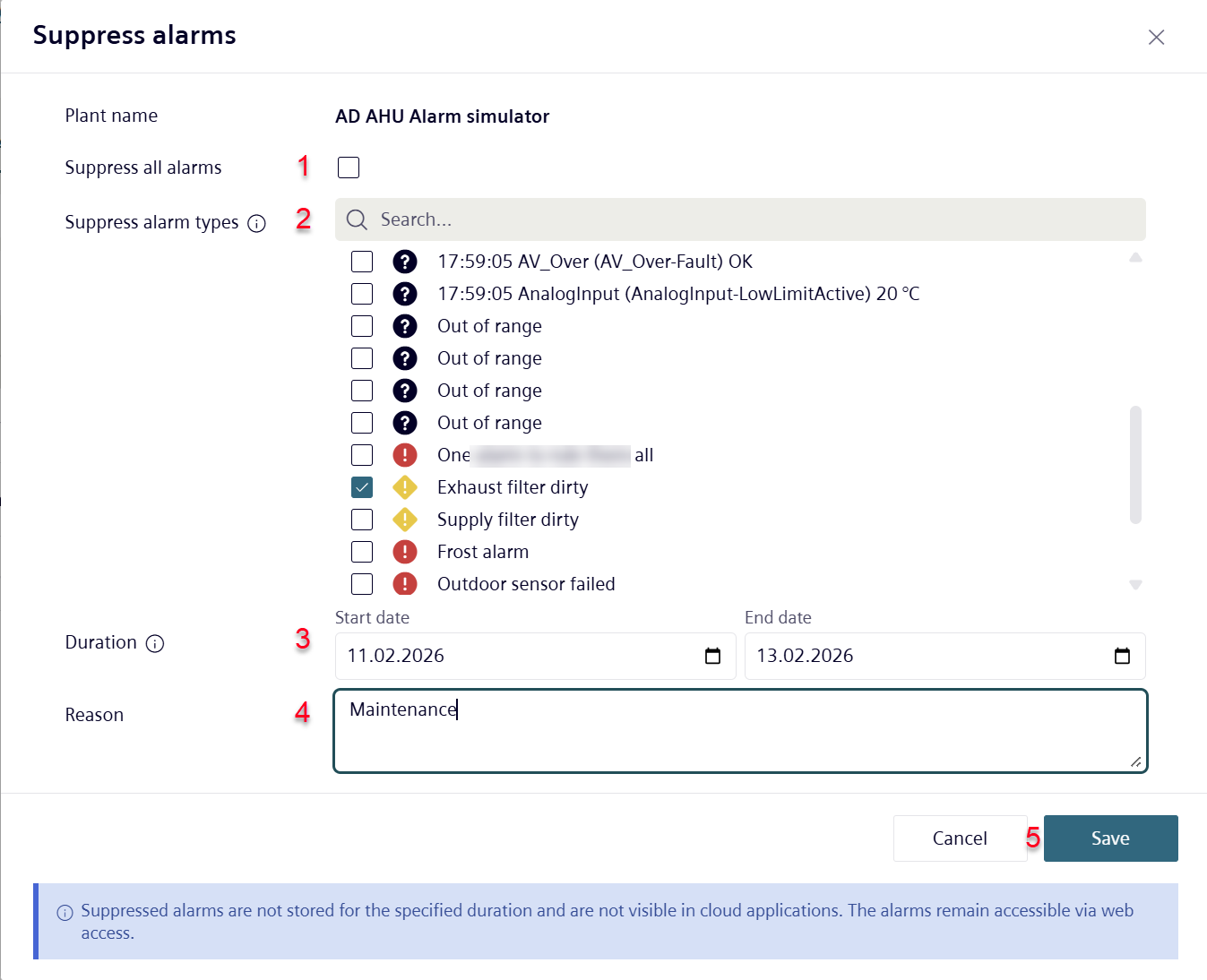

- A new dialog 'Suppress alarms' opens.
- Select either 'Suppress all alarms' (1).
- All alarms of a plant are selected.
- 'Start date' and 'End date' are enabled.
- Or alternatively select only the desired alarms (2).
- 'Start date' and 'End date' are enabled.
- Set either 'Start date' and 'End date' for Alarm suppression (3).
- The selected alarms are suppressed for the desired period.
- Or alternatively do not change 'Start date' and 'End date' (3).
- The selected alarms are permanently suppressed.
- Optional: Indicate a reason for suppressing the alarm (4).
- Click 'Save'(5).
- The selected alarms are suppressed for the user and for the specified period.

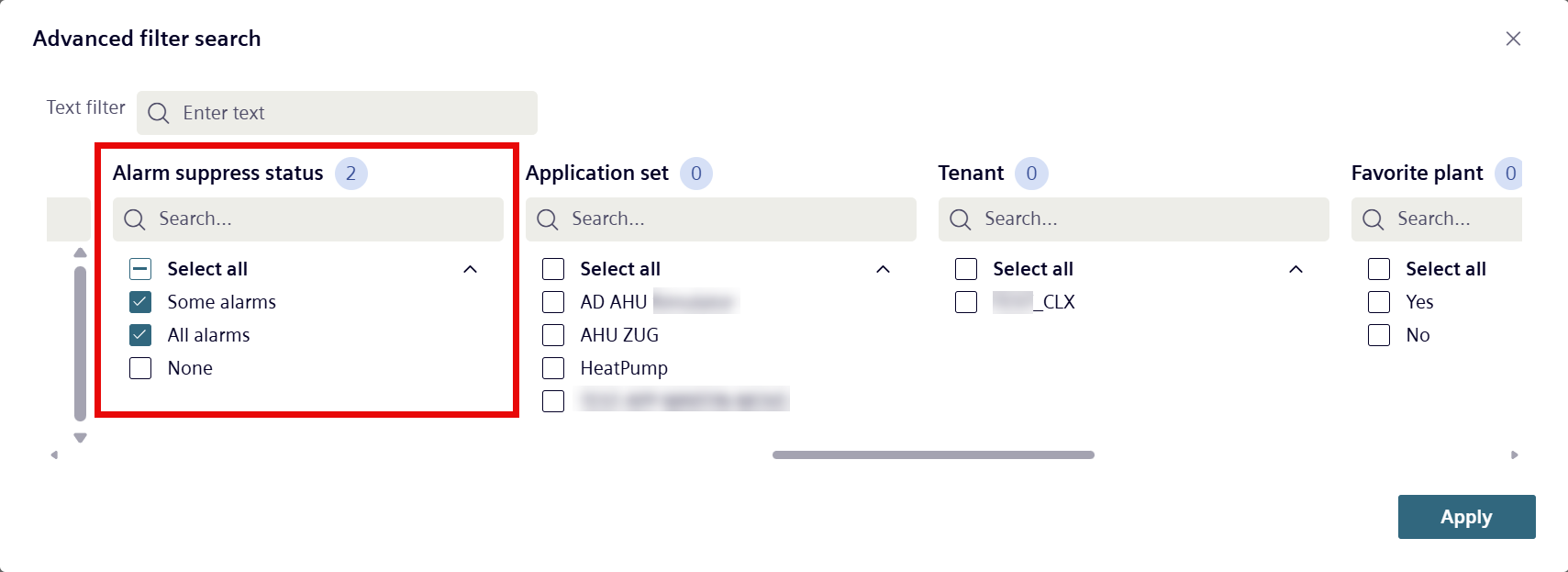

- The plant with suppressed alarms can be filtered and therefore be retrieved quickly:

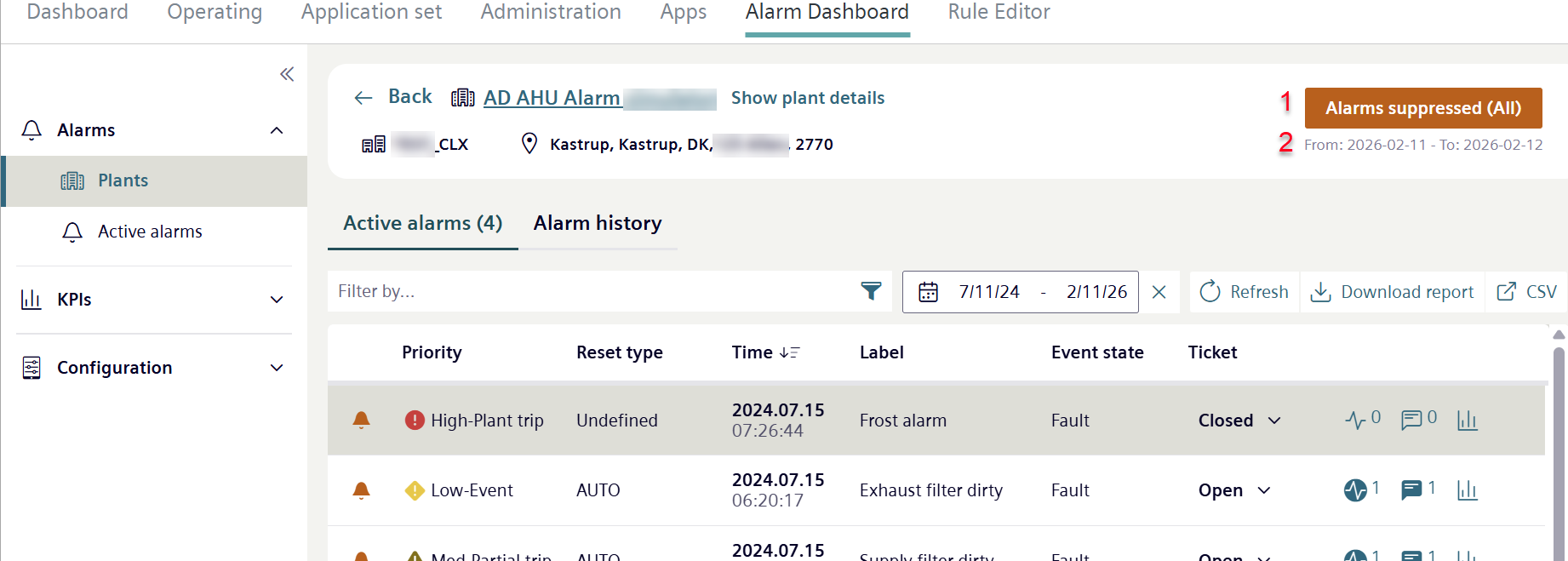

- The 'Suppress Alarms' button changes to 'Alarms Suppressed (Some)' when certain alarms in the plant are selected, or to 'Alarms Suppressed (All)' when all alarms in the plant are selected (1).
- Below the 'Suppress Alarms' button, the period during which the alarms are suppressed is indicated (2).

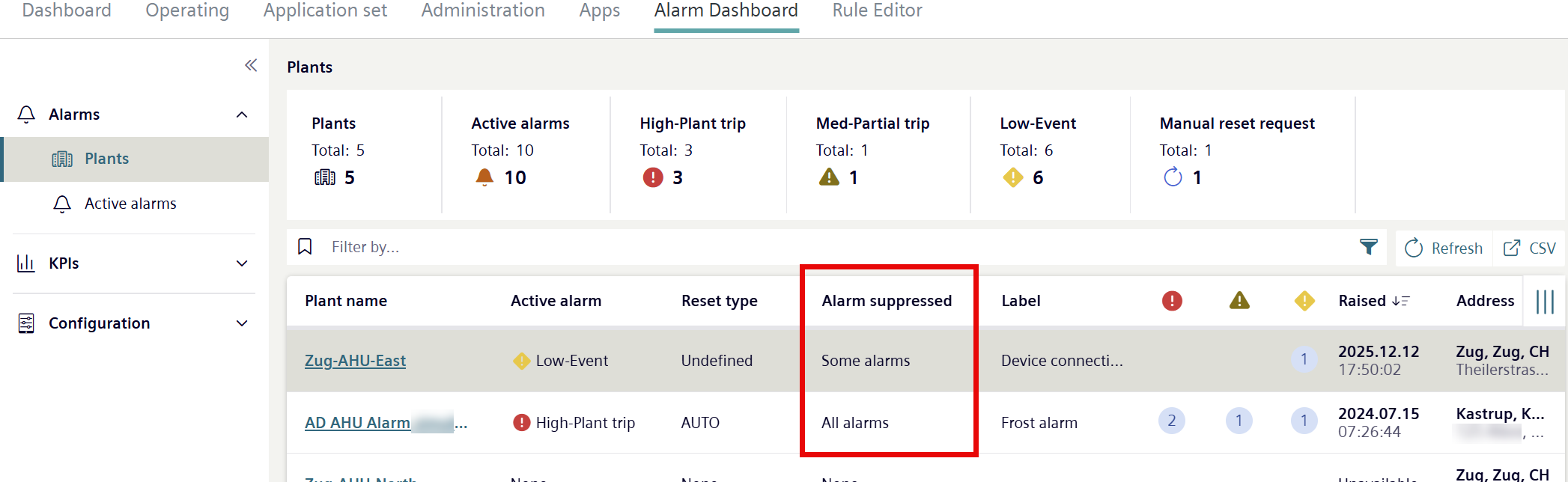

- The status in 'View of plants with an alarm' changes in the 'Suppressed alarm’ column:
Change or cancel alarm suppression
- There are plants with suppressed alarms.
- Click 'Suppressed alarms (some)' or 'Suppressed alarms (all)'.
- The 'Suppress alarms’ window opens.
- Select or clear alarms (1), (2).
- The suppressed alarms change.
- Change the duration of alarm suppression (3).
- The period of the alarm suppression changes.
- Clear all previously selected alarms for suppression.
- Alarm suppression is canceled.
- Click 'Save'.
- The changes are updated in the alarm suppression.
