Result in Climatix IC

The controller is logged in to Climatix IC with the steps described in "Connect to the Internet (IP)" and "Connect to cloud (CSL)" and entered in the list of "Non-assigned plants". Compare the documentation starting at "Plants".

The serial number or the activation key is helpful for finding your controller in Climatix IC; both are always an element of the initial plant name (you change them as a rule). The data is also readable in the SCOPE tool.

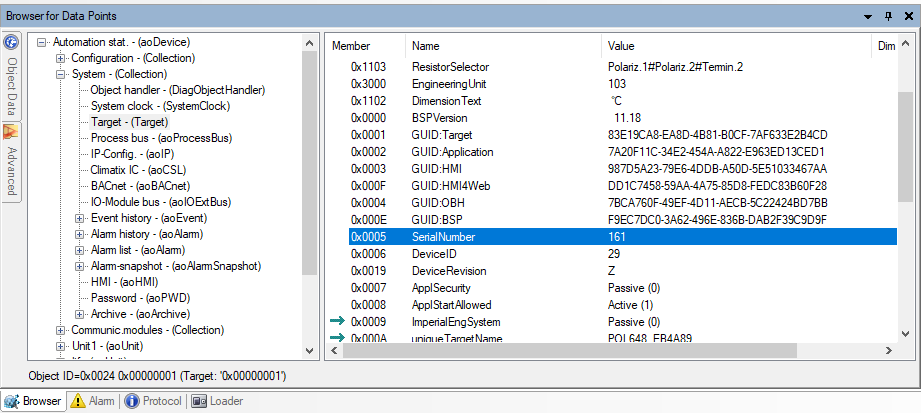

Example of the controller in the SCOPE tool:

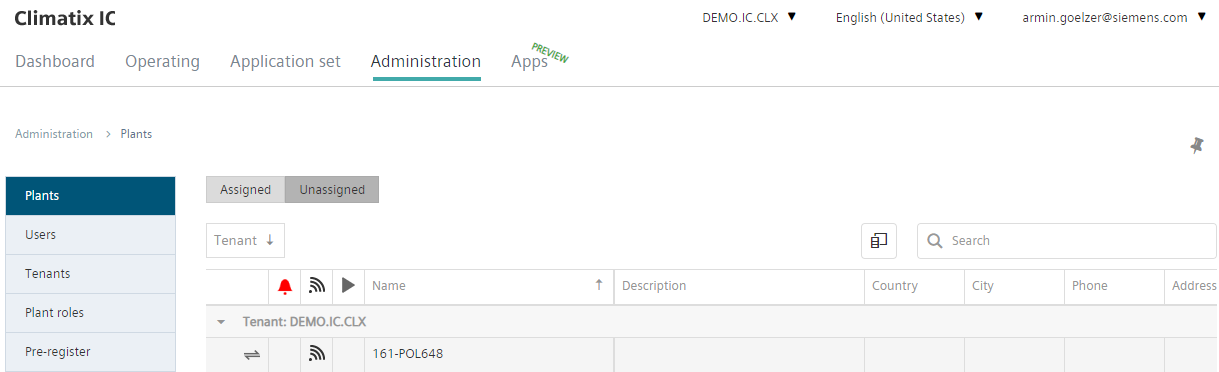

Example of the same controller in Climatix IC:

The number "161" is also an element of the initial name in Climatix IC.

Result

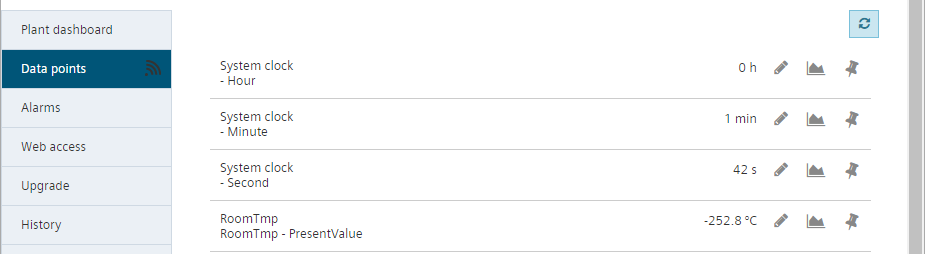

After performing the various steps described in the complete documentation, you now have the following situation in Climatix IC "Operation > Data points". This information can be used as an example for engineering watch pages and data points:
