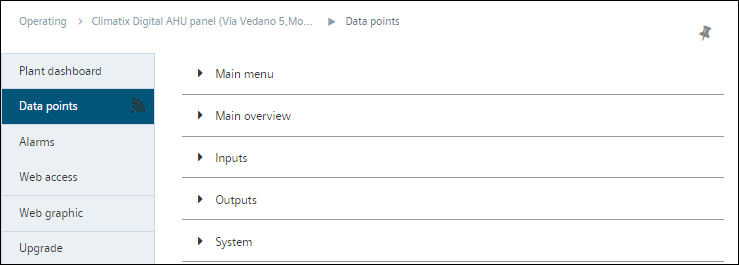

Data points
NOTICE
Operator interventions via Climatix IC change the situation on the plant
Make sure that you have enough information on the actual on-site situation.
Data access and role
Users see the plant data points as per their role and preparations made in the SCOPE tool. Both requirements are described in:
- "Relationship between SCOPE security level, roles, and application security levels"
- "Open an empty demo project and connect locally" and the following section

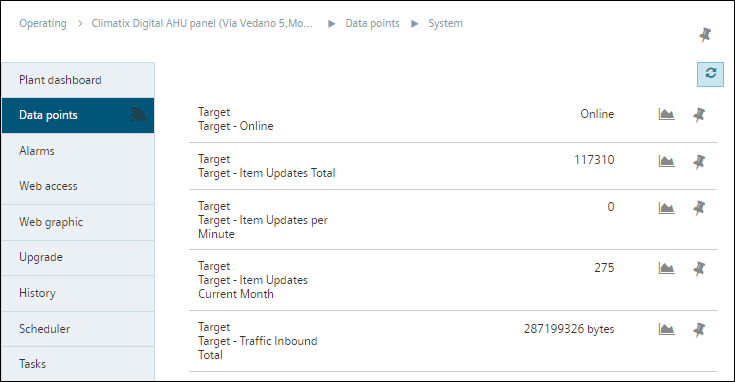

Online and offline data points
- (Near) real-time values are displayed if the plant is online.
- The last recorded values are displayed if the plant is offline.
Climatix IC value resolutions
The display of Climatix IC values is configured automatically:
<1 = 3 decimal places. For example: 0,000
<10 = 2 decimal places. For example: 0.00
<1000 = 1 decimal place. For example: 0.0
> 1000 = No decimal places. For example: 0
