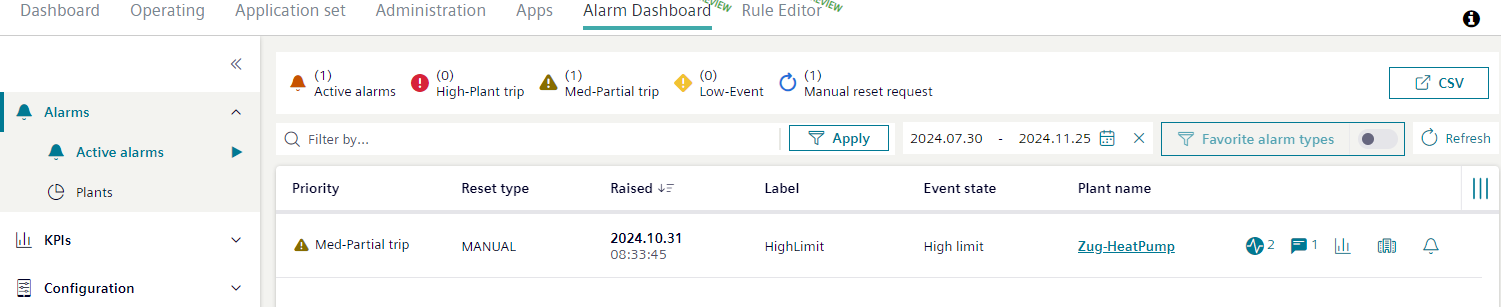

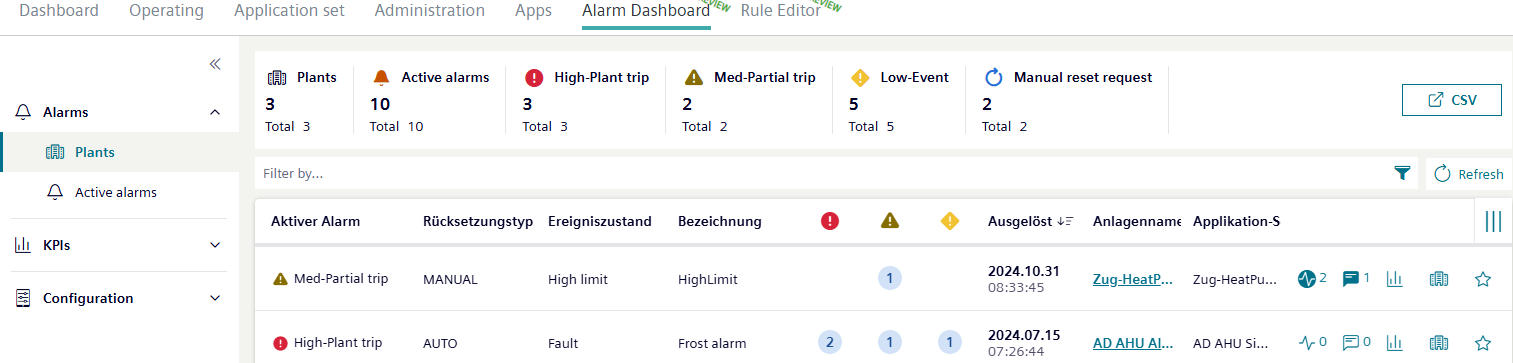

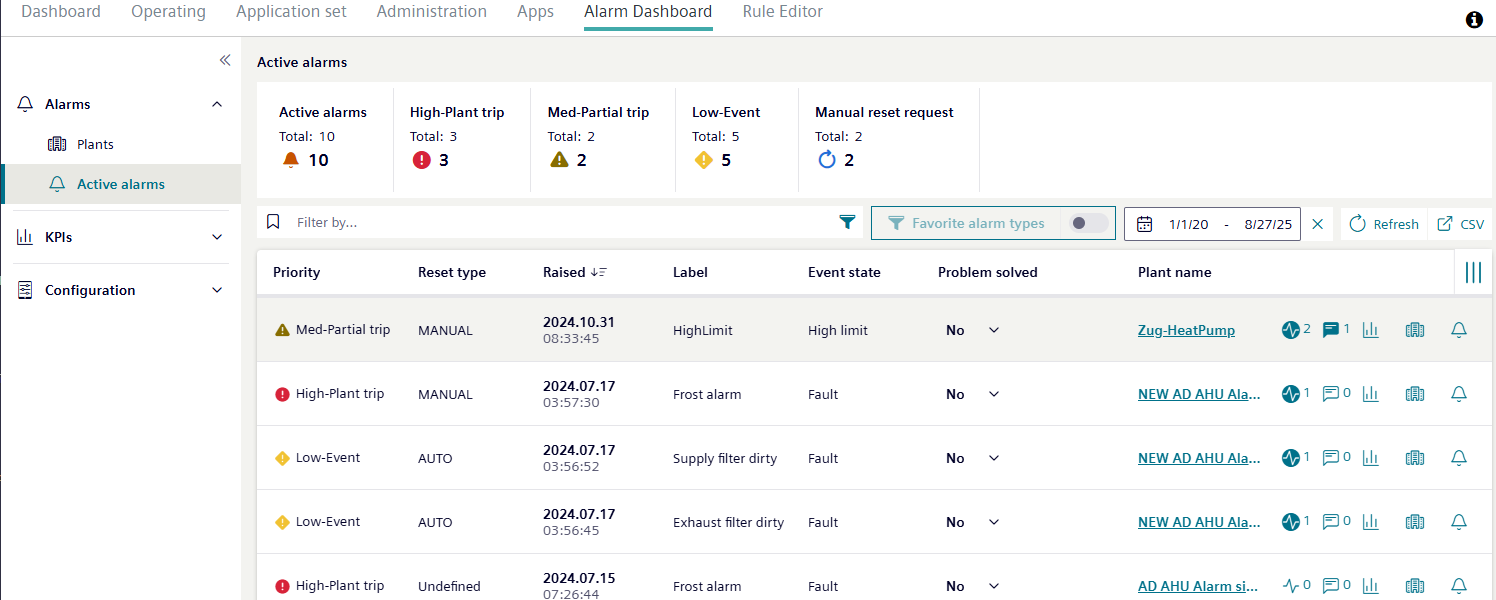

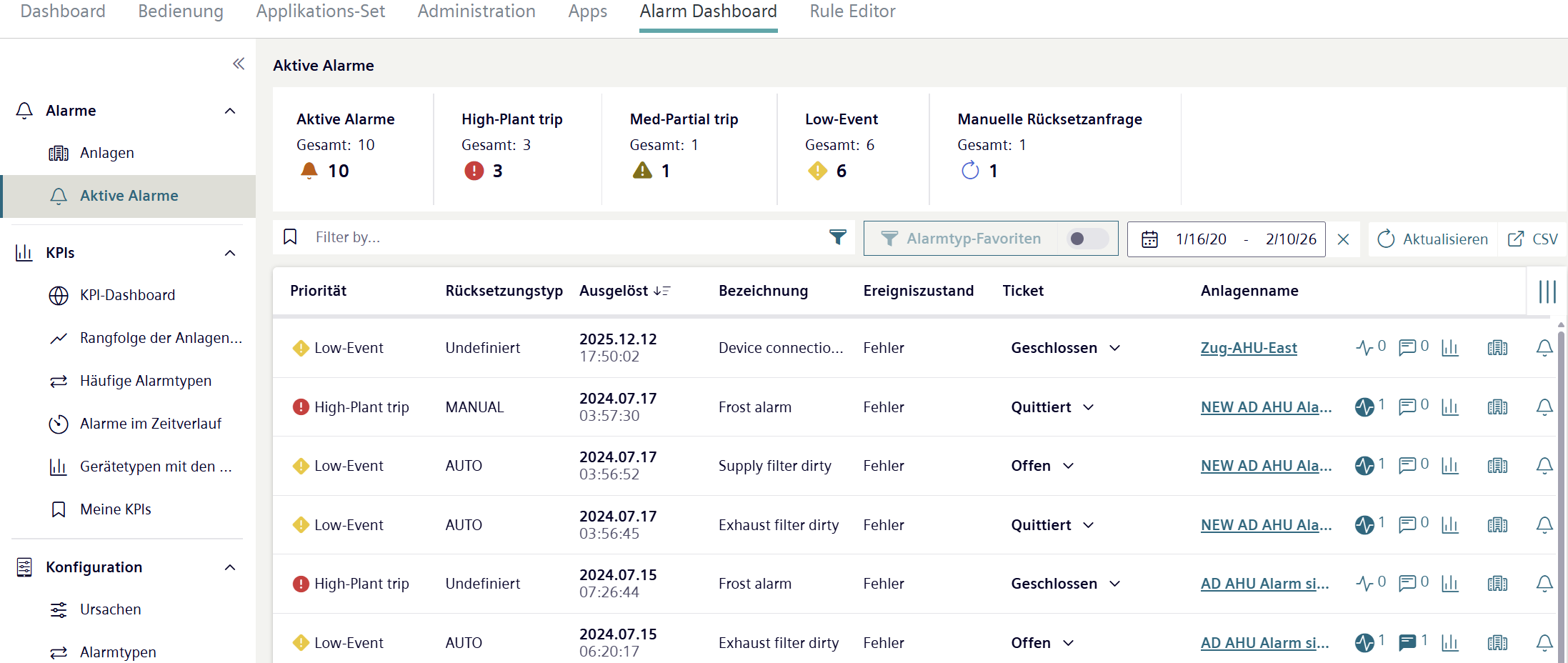

Active alarms view
The Alarm Dashboard displays all known Alarms↑, that are active in the "Active alarms” views. Each alarm is displayed on a separate row. Alarms can be sorted and filtered. You can filter by critical/relevant alarm types.
The filter "Alarm type" is queried from this view and allows a user to display and select all available alarm types that are critical and need to display in the view "Active critical alarm type".
Property | Description |
filter by... | Opens the advanced filter search (see 'Advanced filter search by plants with an alarm'). Filters the alarm list by the selected, predefined properties. Apply: The selected filters are applied and the list of alarms is reduced accordingly. Refresh: Refreshes the displayed list. CSV: Exports the displayed list as .csv file to a local drive. |
Saved filters | Saves filters created by the user for future use (see 'Permanently saving filters').
|
List of active alarms | All active alarms in plants registered in the Tenant. Can be filtered by numerous criteria for a quick overview, to quickly narrow down the view to the desired alarms. For an overview of the available filter options: See 'Intelligent Alarm Application (IAA) user interface', item 7. |

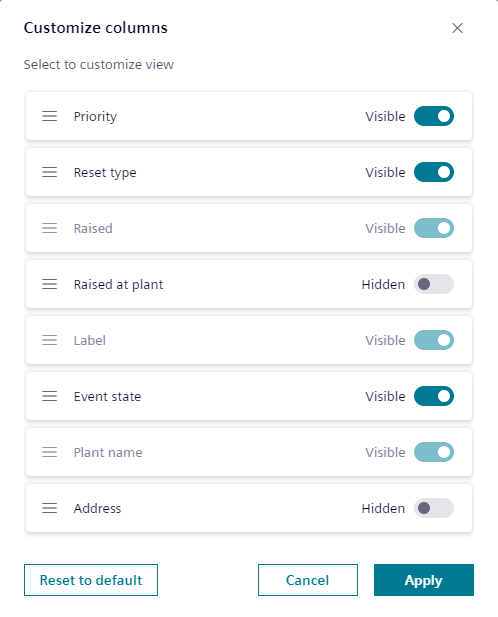

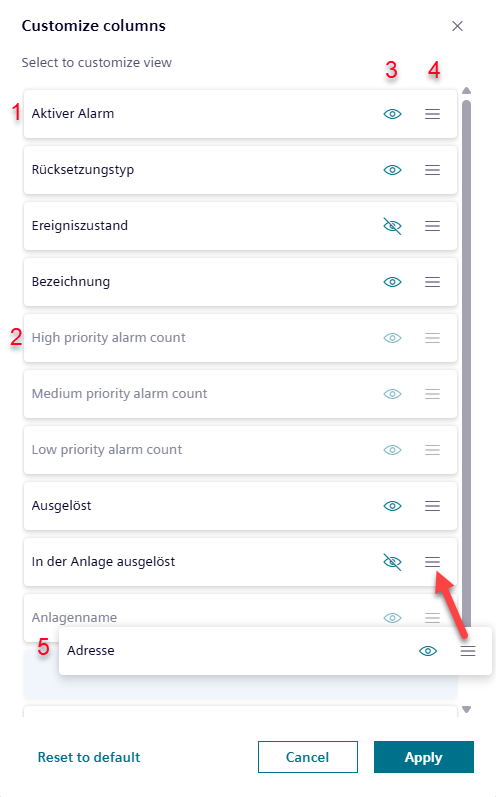

List of available filter types for alarms:
- Dark font: Available filter types (1)
- Light font: Unavailable filter types (2)
- Filter type in the Intelligent Alarm Dashboard activated or deactivated (3):
: Visible
: Not visible
: Change the sequence of filter types in Alarm Dashboard (4) using Drag-and-Drop (5)
